Target-of-Opportunity Follow-up of a TDE

TDE End-to-End Simulation starts from a whole population, Monte Carlo sampled and screened against a real SurveySchedule. A target-of-opportunity (ToO) follow-up is the opposite problem: one specific TDE, at a position and redshift already known (from an alert, say), that gets pointed at directly on whatever cadence is chosen – no schedule, no windowed sampling, no Event.

simulate_photometry() is built for exactly this: given a sky position and whatever time grid and exposure time the caller wants evaluated, it runs the same noise model a real survey simulation uses (a batched SourceSpectrum plus get_snr()), with no schedule in the loop. This example follows one TDE weekly across its whole ~200-day duration and builds its UV light curves.

Choosing the target

A target of opportunity is a specific object, not a population draw. TidalDisruptionEvent still supplies the right SED model (VanVelzenTDESED) and a conservative duration window; only its parameters are fixed here, to one concrete realization (via a seed, for reproducibility), rather than left to be sampled for a whole population. Milky Way foreground dust is resolved the same way a real survey simulation resolves it – resolve_ebv() against the real sky map – since it depends only on sky position, not on when the TDE happens to be observed.

import numpy as np
from astropy import units as u
from astropy.coordinates import SkyCoord
from astropy.time import Time
from m4opt.missions import uvex
from m4opt.synphot.background import GalacticBackground

from uvex_transients.dust import dust_map, log_attenuation, resolve_ebv
from uvex_transients.transients.TDEs import TidalDisruptionEvent
from uvex_transients.utils.plotting import get_band_color, plot_band_light_curve, resolve_fig_axes, set_plot_style

set_plot_style()

tde = TidalDisruptionEvent()

coord = SkyCoord(ra=195.3 * u.deg, dec=27.8 * u.deg)
redshift = 0.03
luminosity_distance = tde.cosmology.luminosity_distance(redshift)
ebv = float(resolve_ebv(dust_map(), coord))

params = {name: value[0] for name, value in tde.sed.sample_parameters(1, rng=12345).items()}
print(f"E(B-V) at target: {ebv:.3f}")
print("SED parameters:", {name: f"{value:.3g}" for name, value in params.items()})

E(B-V) at target: 0.007
SED parameters: {'amplitude': '2.36e+43 erg / s', 'sigma_rise': '3.58 d', 'tau_decline': '26 d', 'temperature': '1.44e+04 K'}

A weekly cadence

No schedule to query – just pick the times to observe. tde.duration_limit is a conservative upper bound on how long this class of event stays relevant; weekly visits across that whole window is a plausible real follow-up cadence for something this slow.

CADENCE = 7 * u.day
EXPTIME = 900 * u.s

t = np.arange(0, tde.duration_limit.to_value(u.day), CADENCE.to_value(u.day)) * u.day
print(f"{len(t)} visits, one every {CADENCE}.")

29 visits, one every 7.0 d.

Simulating photometry, with no zodiacal light

A real ToO trigger time isn’t known in advance, so there’s no meaningful obstime to feed a season-dependent background term like zodiacal light. Passing background=GalacticBackground() explicitly simulates against dust (already folded into the source flux itself, via ebv) plus the Milky Way’s diffuse UV glow only, and leaves observer_location/obstime at their placeholder defaults – both irrelevant to GalacticBackground, so there is nothing else to supply. See simulate_photometry()’s own docstring for exactly when that placeholder default is (and isn’t) safe.

phot = tde.sed.simulate_photometry(
    t,
    EXPTIME,
    uvex.detector,
    coord,
    background=GalacticBackground(),
    redshift=redshift,
    luminosity_distance=luminosity_distance,
    ebv=ebv,
    rng=0,
    **params,
)
print(phot["t", "band", "snr", "ab_mag"][:6])

 t   band         snr                ab_mag
 d
---- ---- -------------------- ------------------
 0.0  FUV 0.011435447604935759  28.88966586939173
 0.0  NUV 0.042660466209702985 28.658262785939527
 7.0  FUV    12.75841223741749 23.251605560381677
 7.0  NUV   28.266290110411916 22.325140164532897
14.0  FUV   114.19899302776052 18.797226845120594
14.0  NUV    228.6763329164951 17.849637520582068

The light curves

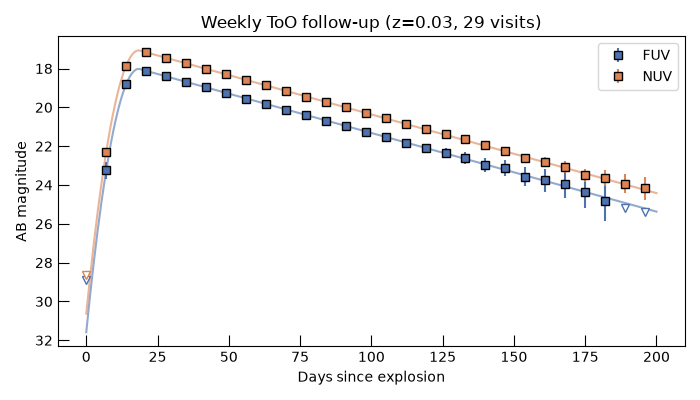

The noiseless theory curve (mag(), evaluated at each band’s pivot wavelength) alongside the simulated weekly visits: detections above SNR=5 as points with error bars, fainter visits as downward-pointing upper limits – the same plotting convention used at the end of TDE End-to-End Simulation.

SNR_THRESHOLD = 5.0
t_theory = np.linspace(0, tde.duration_limit.to_value(u.day), 300) * u.day

fig, ax = resolve_fig_axes(fig_size=(7, 4))
for band in ("FUV", "NUV"):
    nu = uvex.detector.bandpasses[band].pivot().to(u.Hz, equivalencies=u.spectral())
    theory_mag = tde.sed.mag(
        nu,
        t_theory,
        redshift=redshift,
        luminosity_distance=luminosity_distance,
        log_attenuation=log_attenuation(nu, ebv),
        **params,
    )
    plot_band_light_curve(
        ax,
        band,
        phot["t"],
        phot,
        t_theory=t_theory,
        theory_mag=theory_mag,
        snr_threshold=SNR_THRESHOLD,
        color=get_band_color(band),
        err_scale=5.0,
        label=band,
    )

ax.invert_yaxis()
ax.set_xlabel("Days since explosion")
ax.set_ylabel("AB magnitude")
ax.set_title(f"Weekly ToO follow-up (z={redshift}, {len(t)} visits)")
ax.legend()
fig.tight_layout()

Bonus: what zodiacal light would have cost

Suppose the trigger date had been known – say, this TDE actually went off on a specific night. Comparing that against the Galactic-only run above shows what assuming background=GalacticBackground() glossed over: passing background=None (the default) uses uvex’s own detector background, Galactic and zodiacal light together, and now real observer_location/obstime values (from observer_location()) are needed too, since zodiacal light actually depends on both.

hypothetical_trigger = Time("2031-03-01T00:00:00", scale="utc")
obstime = hypothetical_trigger + t
observer_location = uvex.observer_location(obstime)

phot_with_zodi = tde.sed.simulate_photometry(
    t,
    EXPTIME,
    uvex.detector,
    coord,
    observer_location=observer_location,
    obstime=obstime,
    redshift=redshift,
    luminosity_distance=luminosity_distance,
    ebv=ebv,
    rng=0,
    **params,
)

for band in uvex.detector.bandpasses:
    galactic_only = np.nanmedian(phot["snr"][phot["band"] == band])
    with_zodi = np.nanmedian(phot_with_zodi["snr"][phot_with_zodi["band"] == band])
    print(f"{band}: median SNR {galactic_only:.1f} (Galactic only) vs {with_zodi:.1f} (+ zodiacal)")

FUV: median SNR 27.5 (Galactic only) vs 27.5 (+ zodiacal)
NUV: median SNR 56.7 (Galactic only) vs 56.2 (+ zodiacal)
